Genuine V3 Underground Cable Locator Wire Detector Tracker Electrician NBN Tools

·         Genuine V3 Underground Cable Locator Wire Detector Tracker

·         Stock No.: T1501

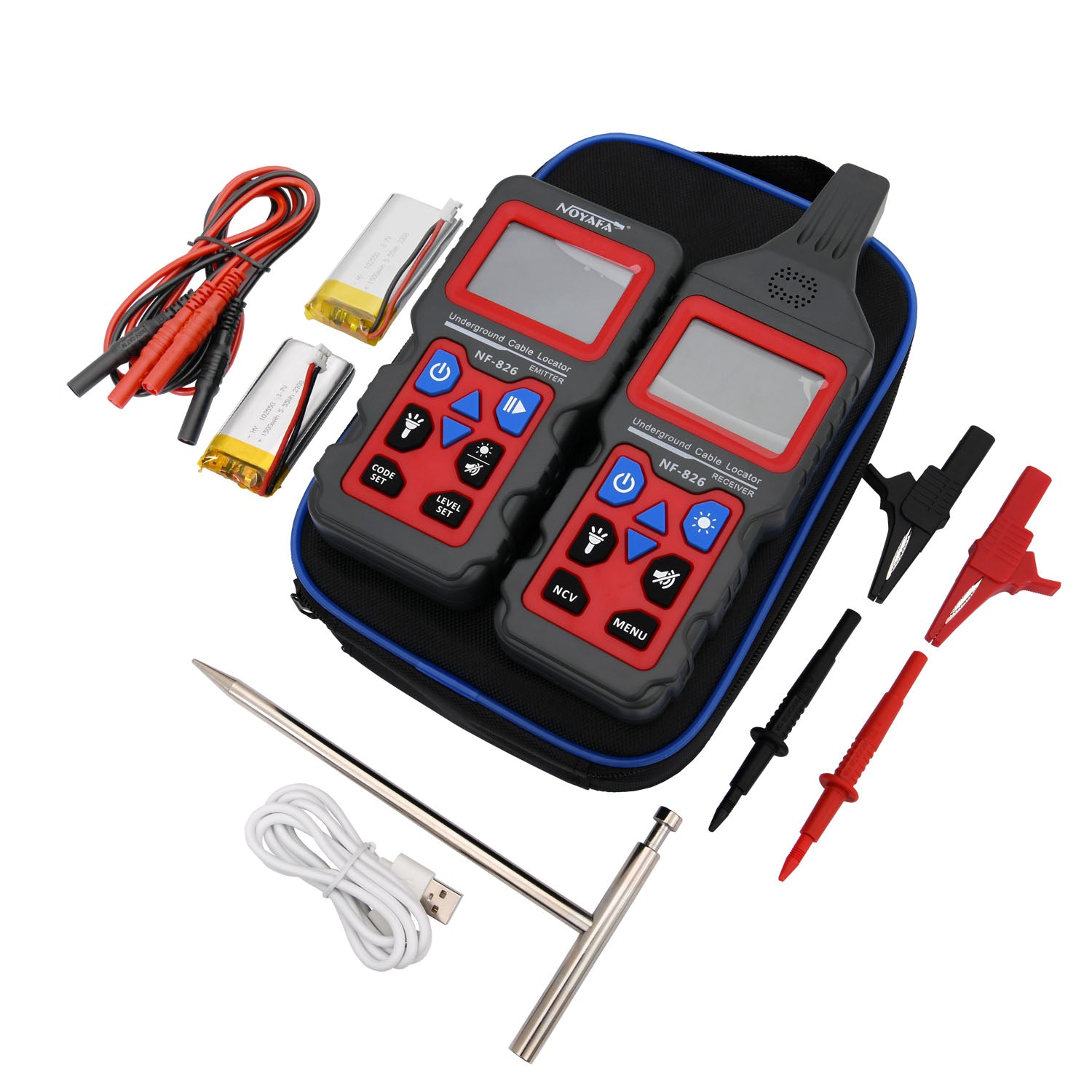

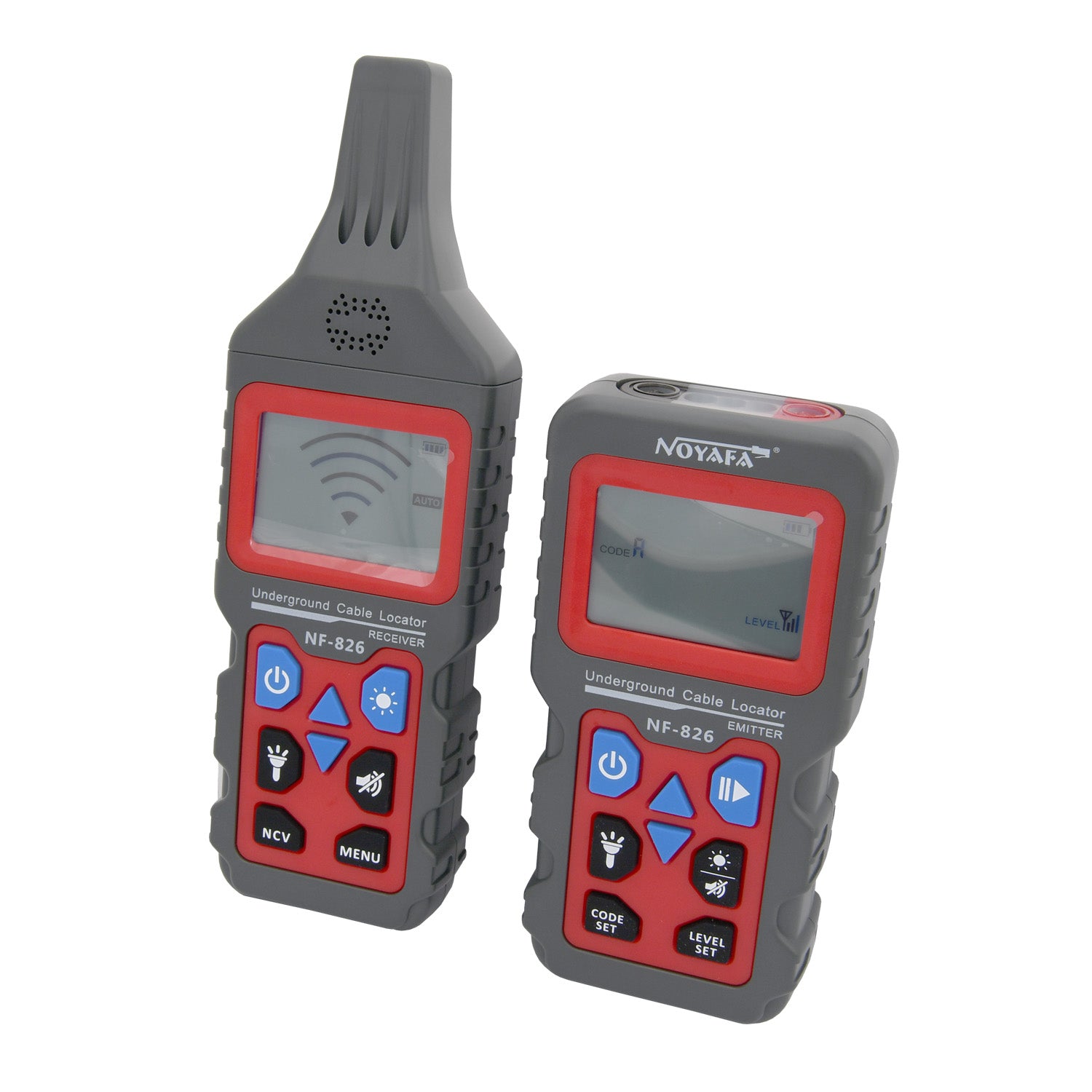

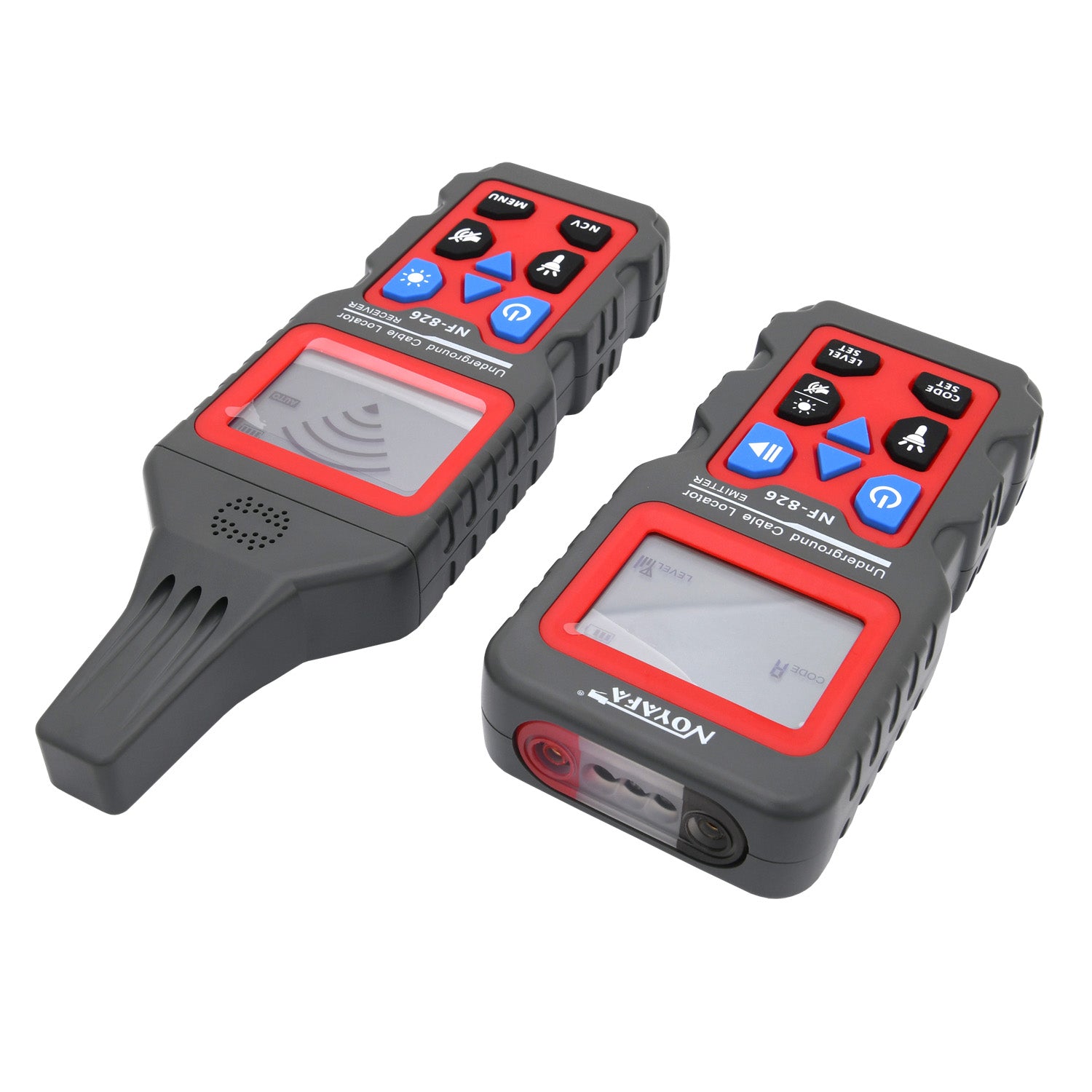

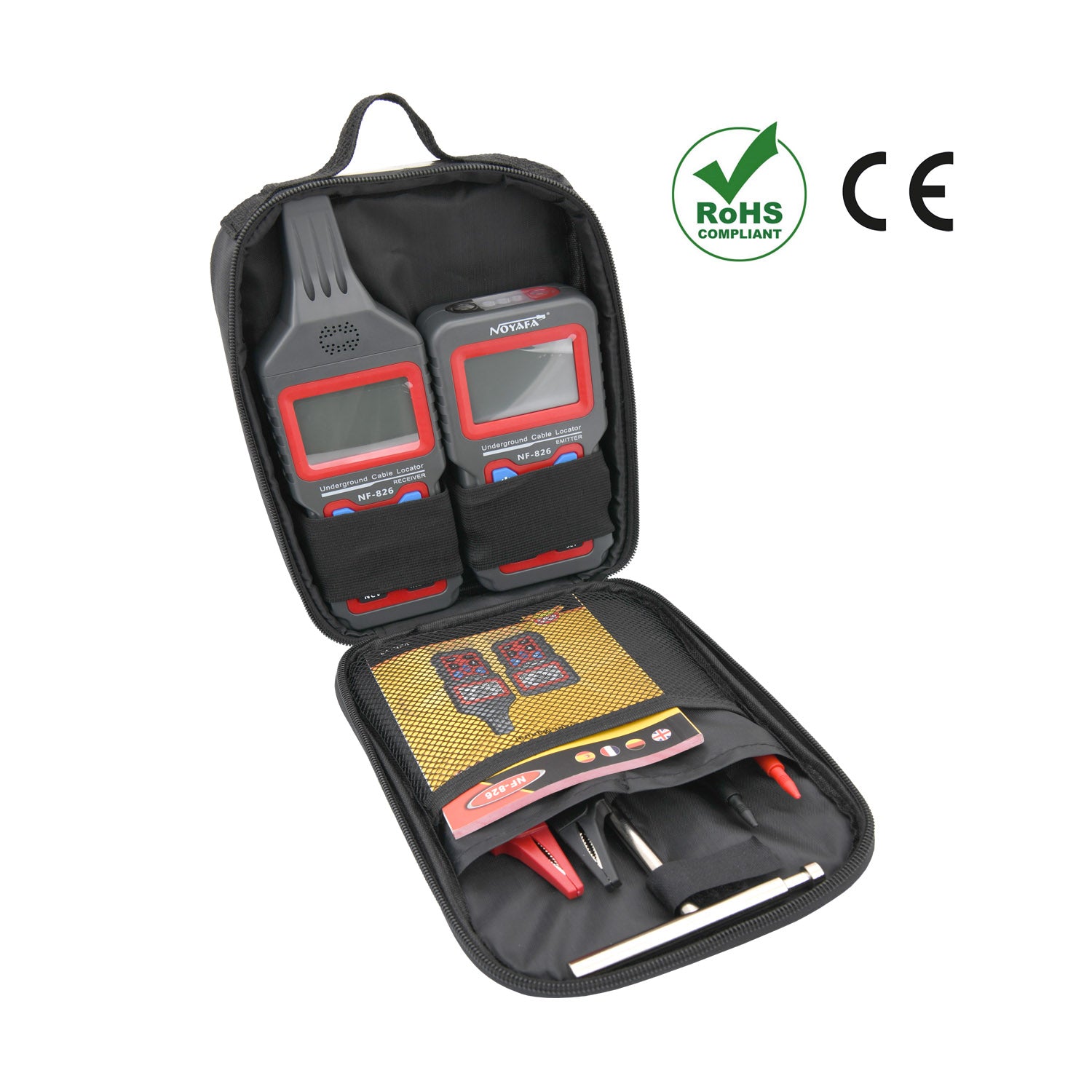

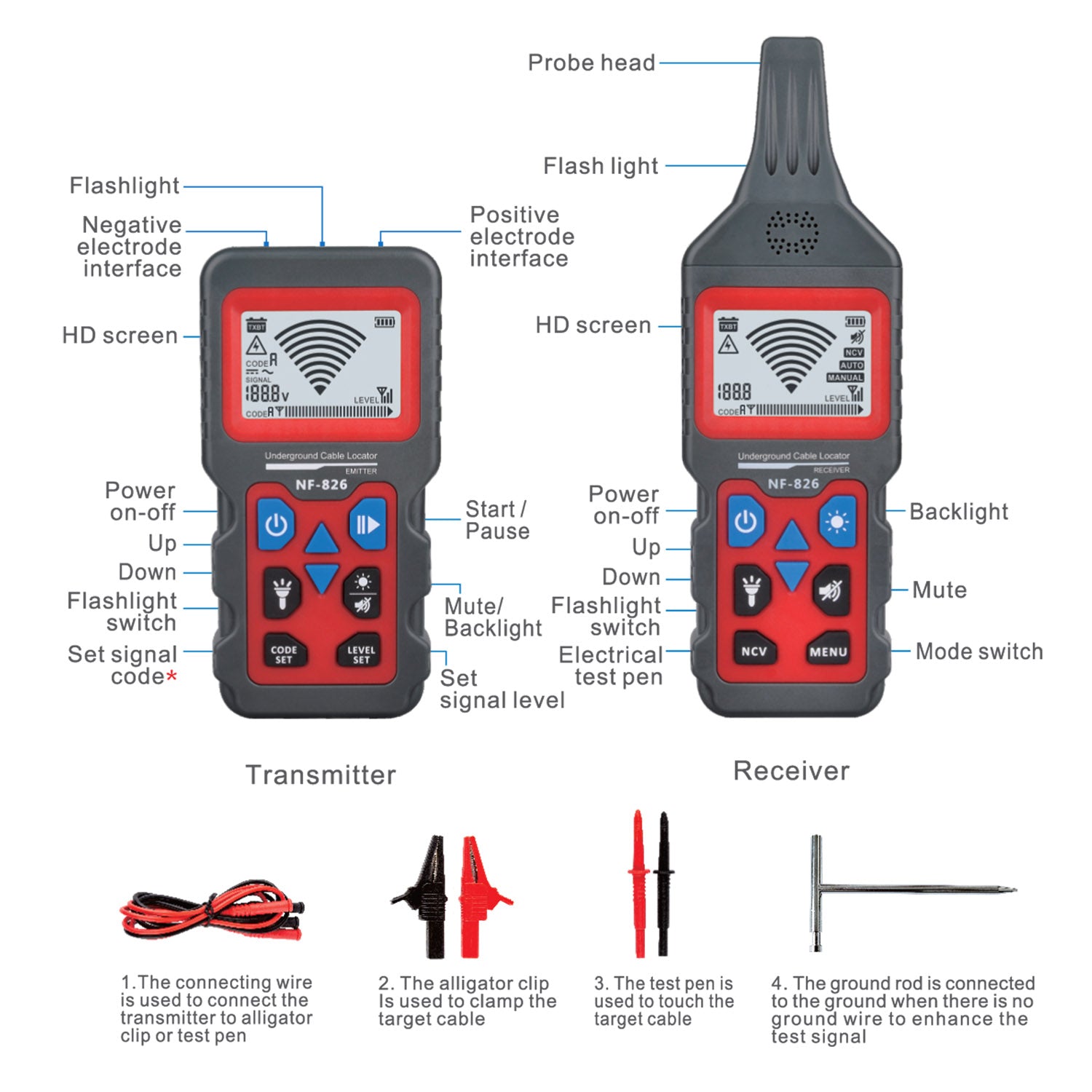

·         The Underground & Wall Cable Detector consists of a transmitter, receiver, and accessories. The new integrated devices and digital circuit technology ensure stable and reliable electrical performance. Based on signal changes, the specific location and fault point of buried cables or pipelines can be accurately detected.

·         This device is suitable for the construction, maintenance, and overhaul of power cables, communication cables, electric heating lines, and building pipelines.

·         Precautions:

o    Before each use, inspect the detector and test leads for any damage. Ensure that the detector and the test leads are in good working condition.

o    When using the detector, ensure the rated voltage of the line under test does not exceed 400V.

o    If the transmitter is connected to a live circuit and the ground jack on the transmitter is connected to the protective ground, leakage current in the power supply line and the transmitter's loop current may combine. This could cause the Residual Current Device (RCD) or Ground Fault Interrupter (GFI) to trip, leading to disconnection.

·         Characteristics:

o    Detecting the path of cables, electrical lines, and water or gas pipelines buried in walls or underground;

o    Identifying breaks and short circuits in cables and electrical lines buried in walls or underground;

o    Locating fuses and their circuits;

o    Detecting covered outlets and distribution boxes;

o    Pinpointing the direction, breakpoint, and short-circuit location of electric heating lines under floors.

·         Three most common uses and wiring methods

o    Locating the cable route:

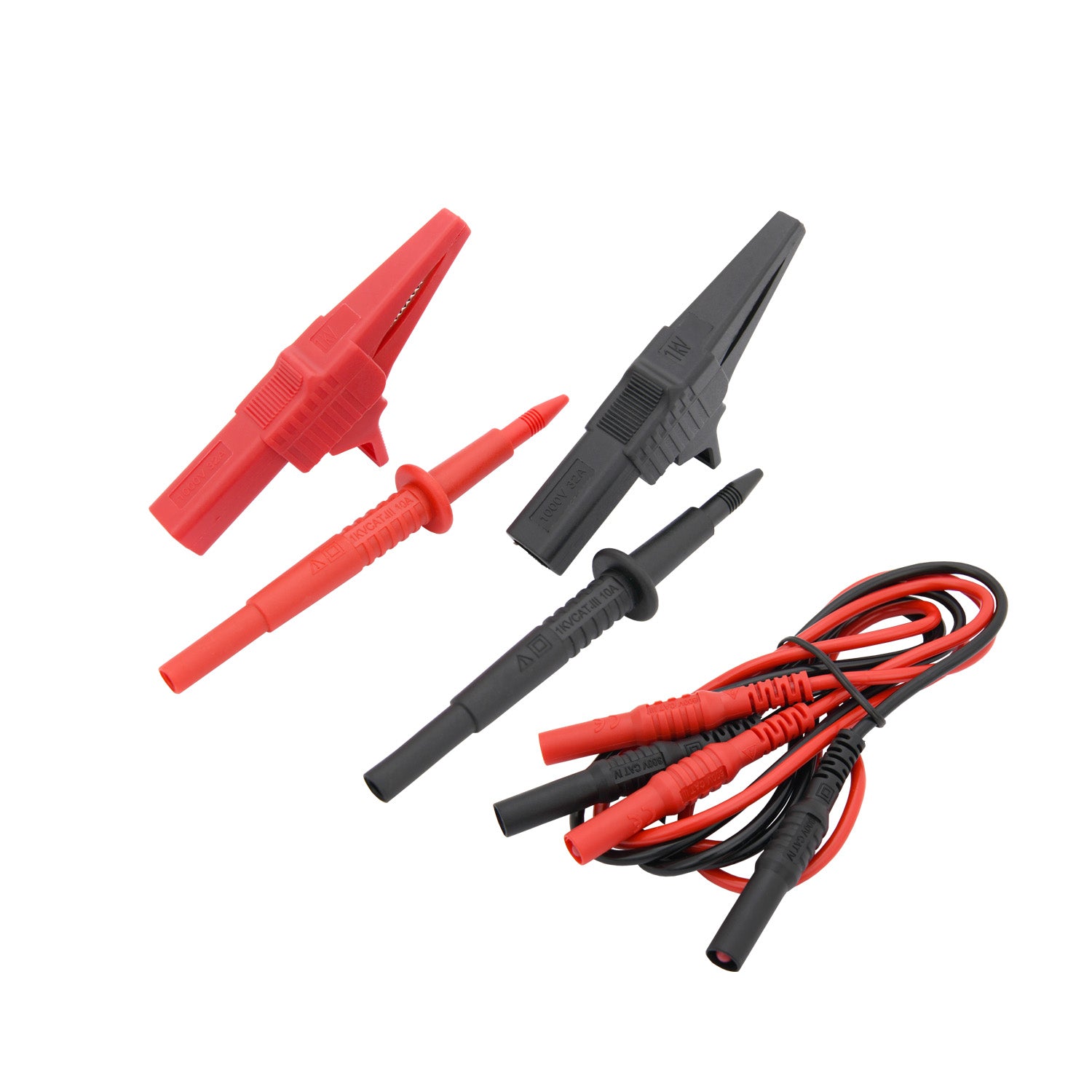

§  Connect the red clip to the target cable and the black clip to the ground (for multi-core cables, it is recommended to ground the other cores as well).

§  The receiver tracks the signal along the cable, indicating the cable's direction.

o    Locating a cable breakpoint:

§  Connect the red clip to the broken cable and the black clip to the ground (for multi-core cables, all other cores must be grounded together).

§  The receiver follows the signal along the cable. It will emit a signal before the breakpoint but stop emitting once it passes the breakpoint.

o    Locating a short circuit:

o    Locating the cable route:

§  Connect the red clip to the target cable and the black clip to the ground (for multi-core cables, it is recommended to ground the other cores as well).

§  The receiver tracks the signal along the cable, indicating the cable's direction.

o    Locating a cable breakpoint:

§  Connect the red clip to the broken cable and the black clip to the ground (for multi-core cables, all other cores must be grounded together).

§  The receiver follows the signal along the cable. It will emit a signal before the breakpoint but stop emitting once it passes the breakpoint.

o    Locating a short circuit:

§  Attach the red clip to one end of the shorted conductor and the black clip to the other end (for multi-core cables, all remaining cores should also be connected to the black clip).

§  The receiver follows the signal along the cable. It will sound before the short circuit point but will not emit any signal after the short circuit point.

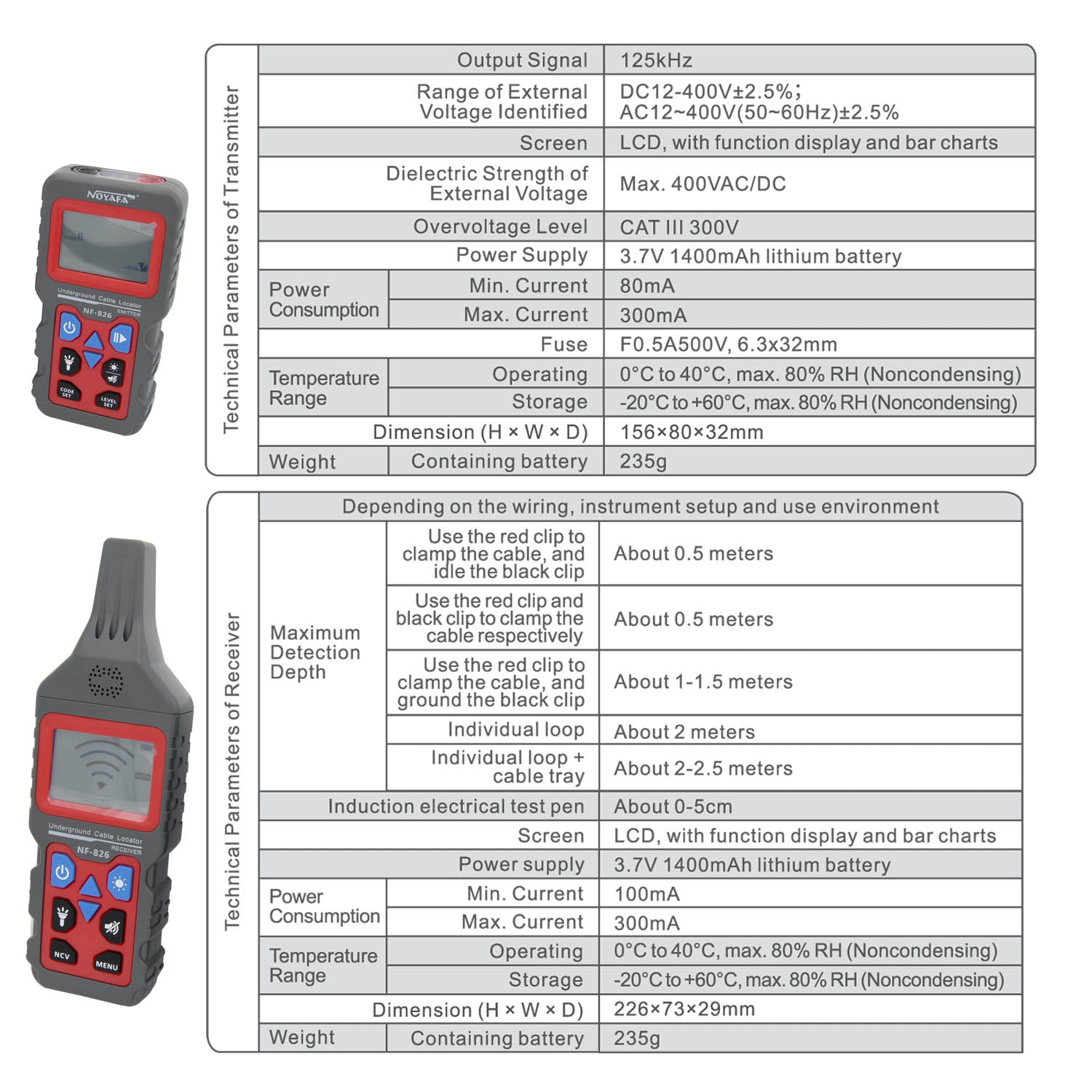

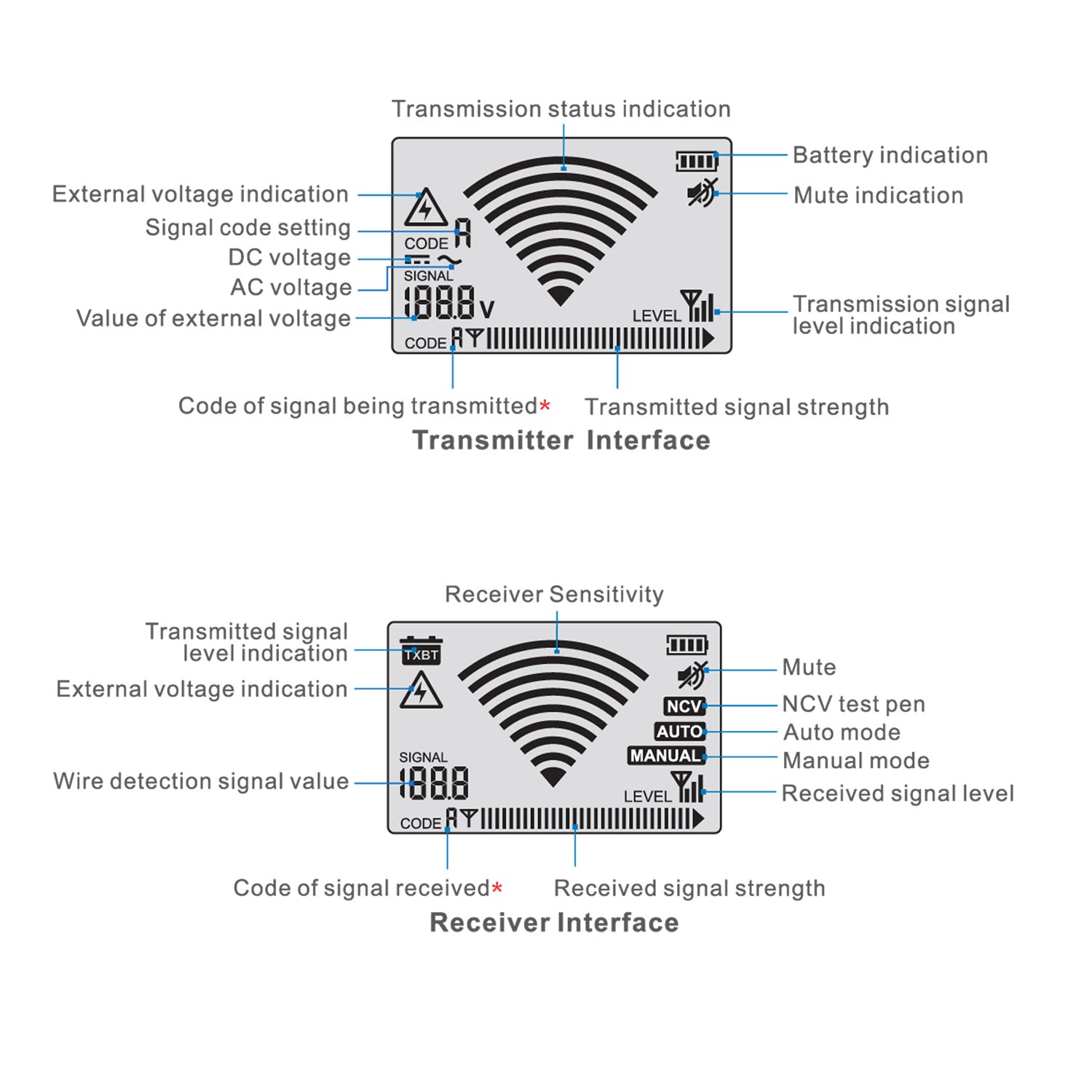

·         Transmitter Specifications:

o    Output Signal: 125 kHz

o    Range of External Voltage Identified:

§  DC: 12-400V±2.5%

§  AC: 12-400V (50-60Hz) ±2.5%

o    Screen: LCD with function display and bar charts

o    Dielectric Strength of External Voltage: Max. 400V AC/DC

o    Overvoltage Level: CAT III 300V

§  Power Supply: 3.7V 1400mAh lithium battery

§  Power Consumption:

§  Minimum Current: 80mA

§  Maximum Current: 300mA

o    Fuse: F0.5A/500V, 6.3x32 mm

o    Temperature Range:

§  Operating: 0°C to 40°C, max. 80% RH (non-condensing)

§  Storage: -20°C to 60°C, max. 80% RH (non-condensing)

o    Dimensions (HxWxD): 156x80x32 mm

·         Receiver Specifications:

o    Maximum Detection Depth: Depending on the wiring, instrument setup, and use environment:

§  Using the red clip to clamp the cable and leaving the black clip idle: About 0.5 meters

§  Using the red and black clips to clamp the cable: About 0.5 meters

§  Using the red clip to clamp the cable and grounding the black clip: About 1-1.5 meters

§  Individual Loops:

Single loop: About 2 meters

Single loop + cable tray: About 2-2.5 meters

Induction Electrical Test Pen:

Detection depth: About 0-5 cm

Screen: LCD with function display and bar charts

Power Supply: 3.7V 1400mAh lithium battery

§  Power Consumption:

Minimum Current: 100mA

Maximum Current: 300mA

§  Temperature Range:

Operating: 0°C to 40°C, max. 80% RH (non-condensing)

Storage: -20°C to 60°C, max. 80% RH (non-condensing)

Dimensions (HxWxD): 226x73x29 mm
