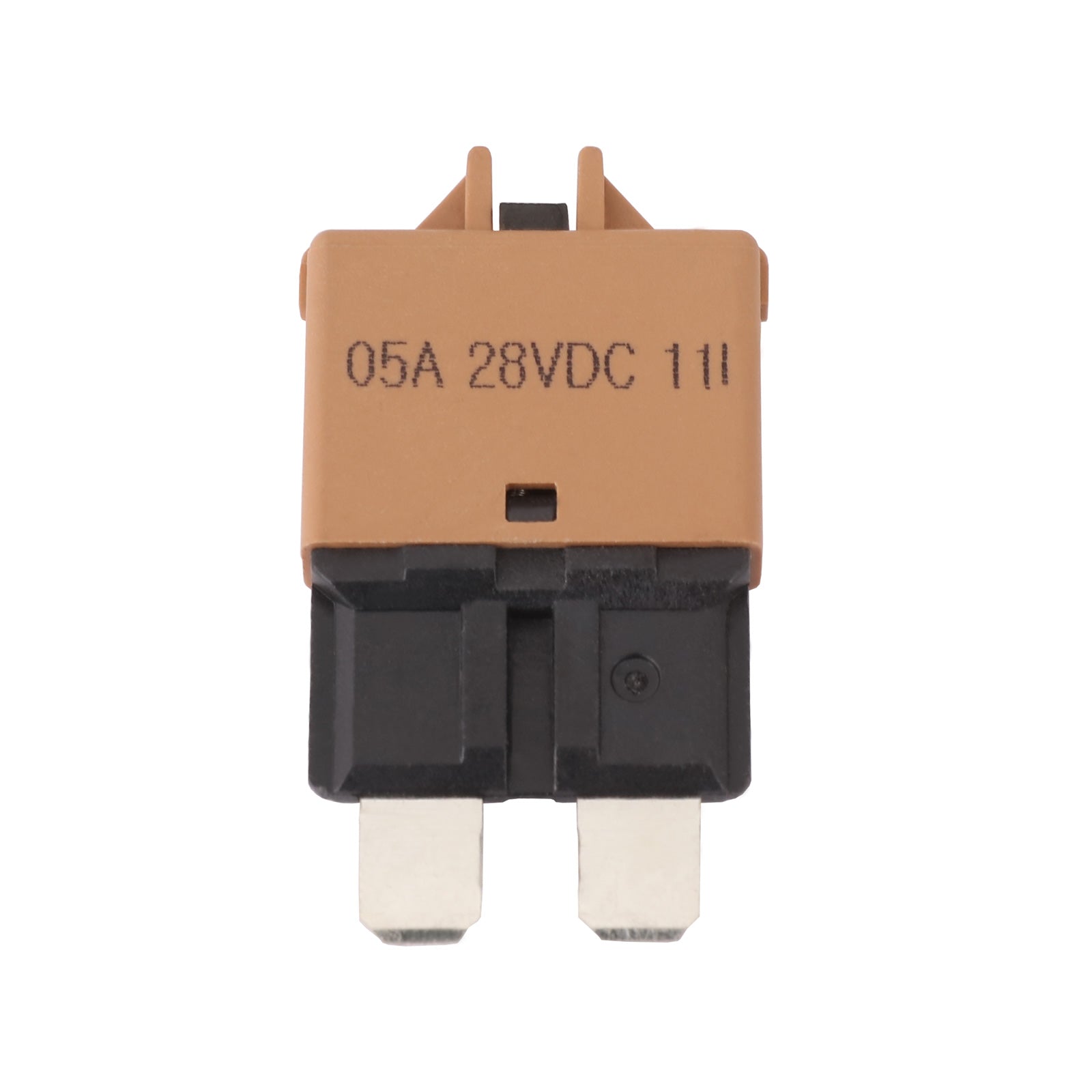

5A STD Blade ATC Type Manual Reset Circuit Breaker – Reliable Automotive Protection

The 5A STD Blade ATC Manual Reset Circuit Breaker (Stock No. T0759) is a high-quality, resettable automotive fuse replacement designed for rapid circuit protection in cars, trucks, and other vehicles. Using a bimetal structure, it quickly interrupts power in case of overload and allows the user to manually reset the circuit, eliminating the need for disposable fuses.

Its ATC push-terminal design ensures easy installation and replacement in standard fuse blocks, making it a perfect choice for car modifications, repairs, and maintenance. Built from UL-rated 94V0 thermoplastic with tin-plated copper alloy terminals, it guarantees safety, durability, and reliable performance under harsh conditions.

Key Features:

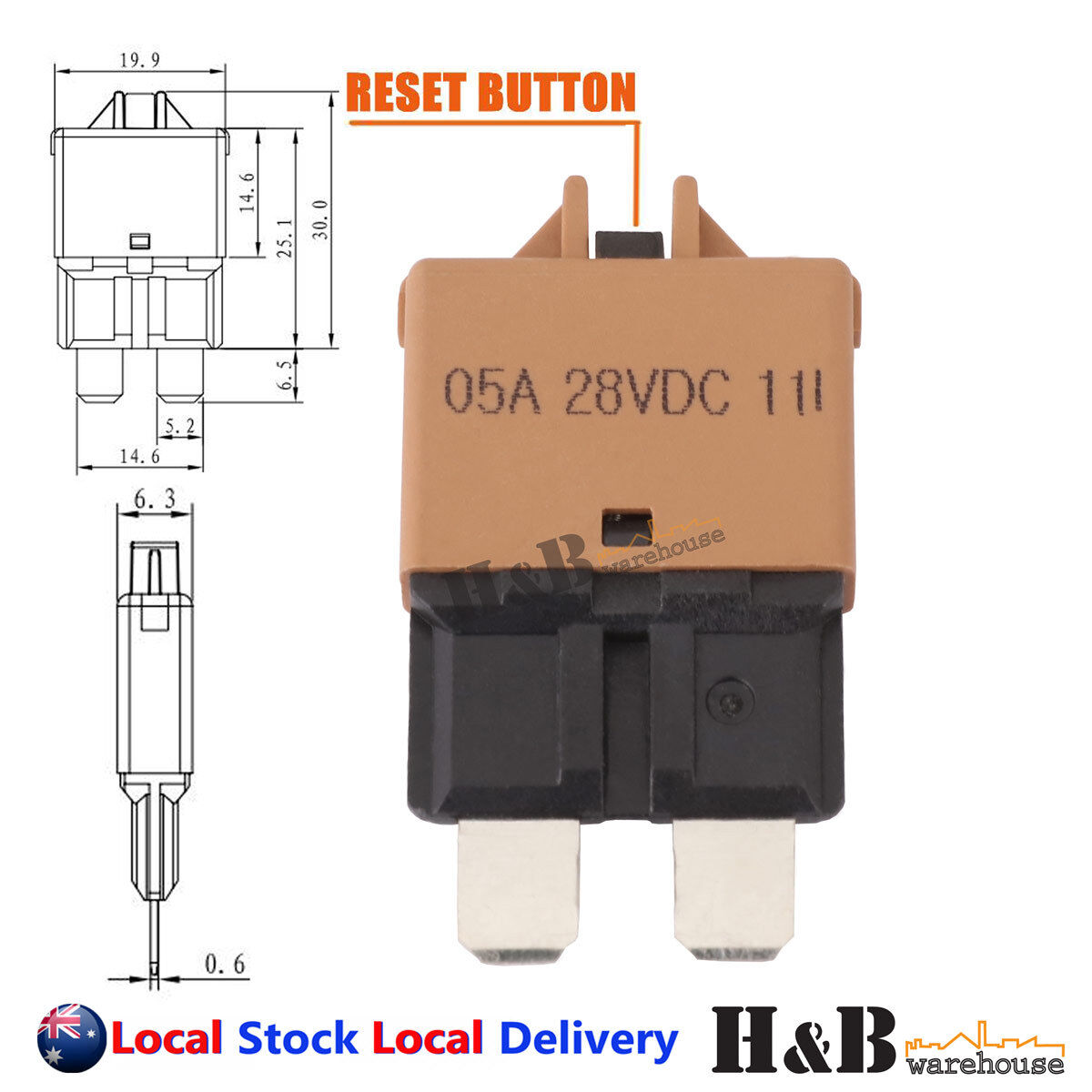

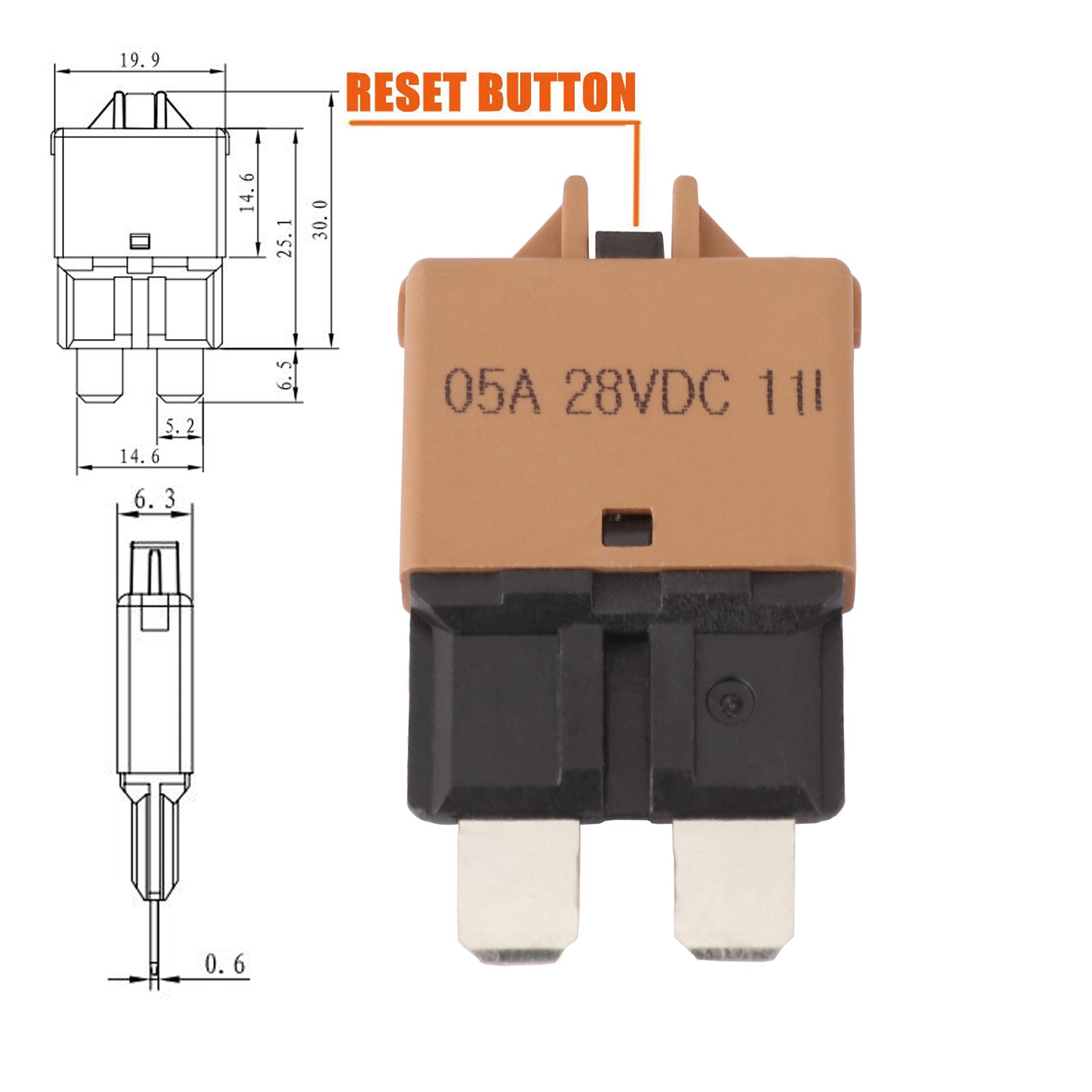

• ✅ Manual Reset Function – Quickly restores power after overload protection.

• ✅ ATC Push-Terminal Design – Compatible with standard ATC fuse blocks.

• ✅ Reliable Overload Protection – Safeguards automotive circuits with bimetal technology.

• ✅ Durable Construction – UL-rated thermoplastic body and tin-plated copper terminals.

• ✅ Wide Operating Range – Works from -40°C to 85°C (-40°F to 185°F)

• ✅ Ignition Protected – Complies with SAEJ553 and SAEJ1171 standards.

Specifications:

• Rating: 5A, 28VDC

• Interrupt Rating: 2000A @ 28VDC

• Material: UL-rated 94V0 thermoplastic, tin-plated copper alloy terminals

• Operating Temperature: -40°C to 85°C (-40°F to 185°F)

• Storage Temperature: -40°C to 125°C (-40°F to 260°F)

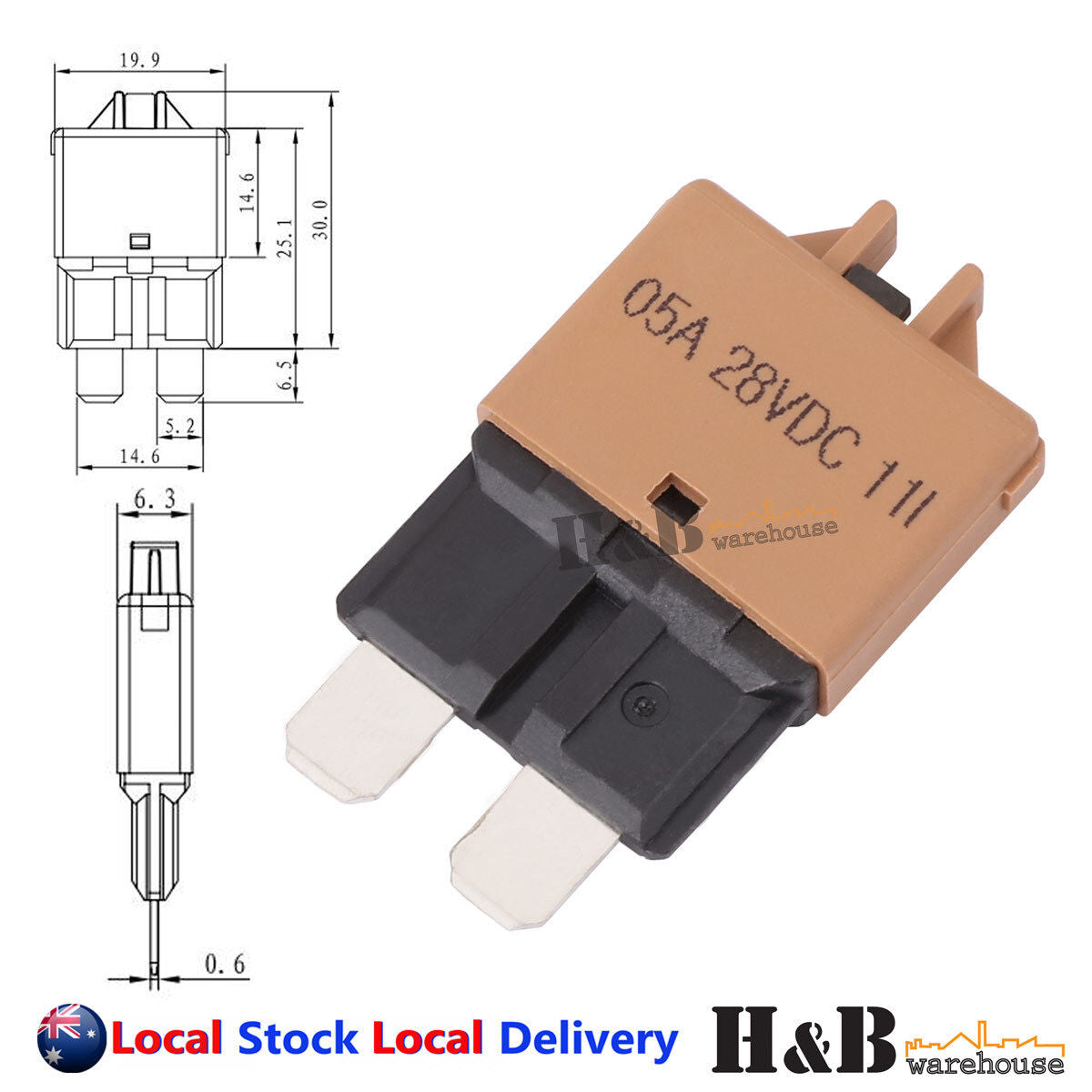

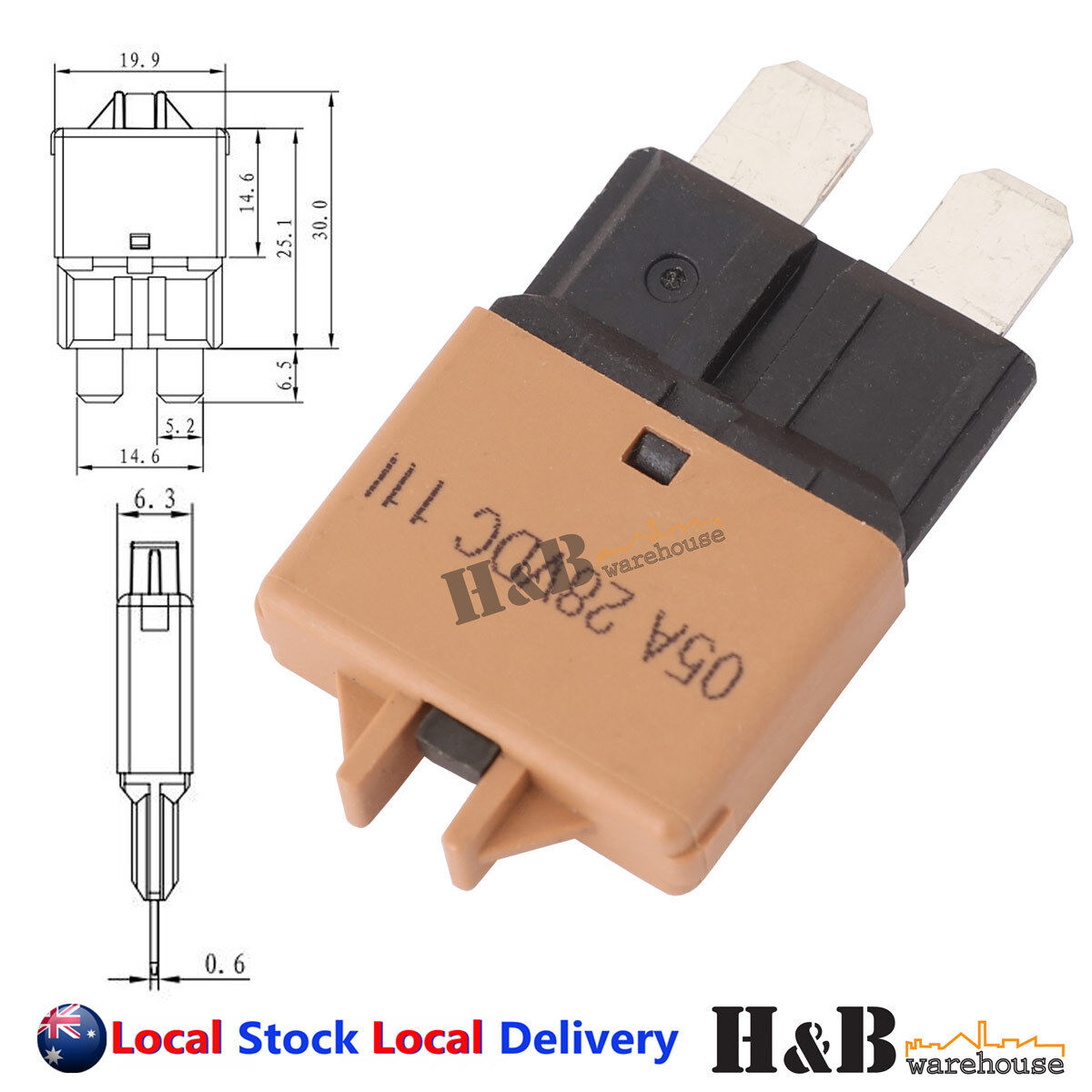

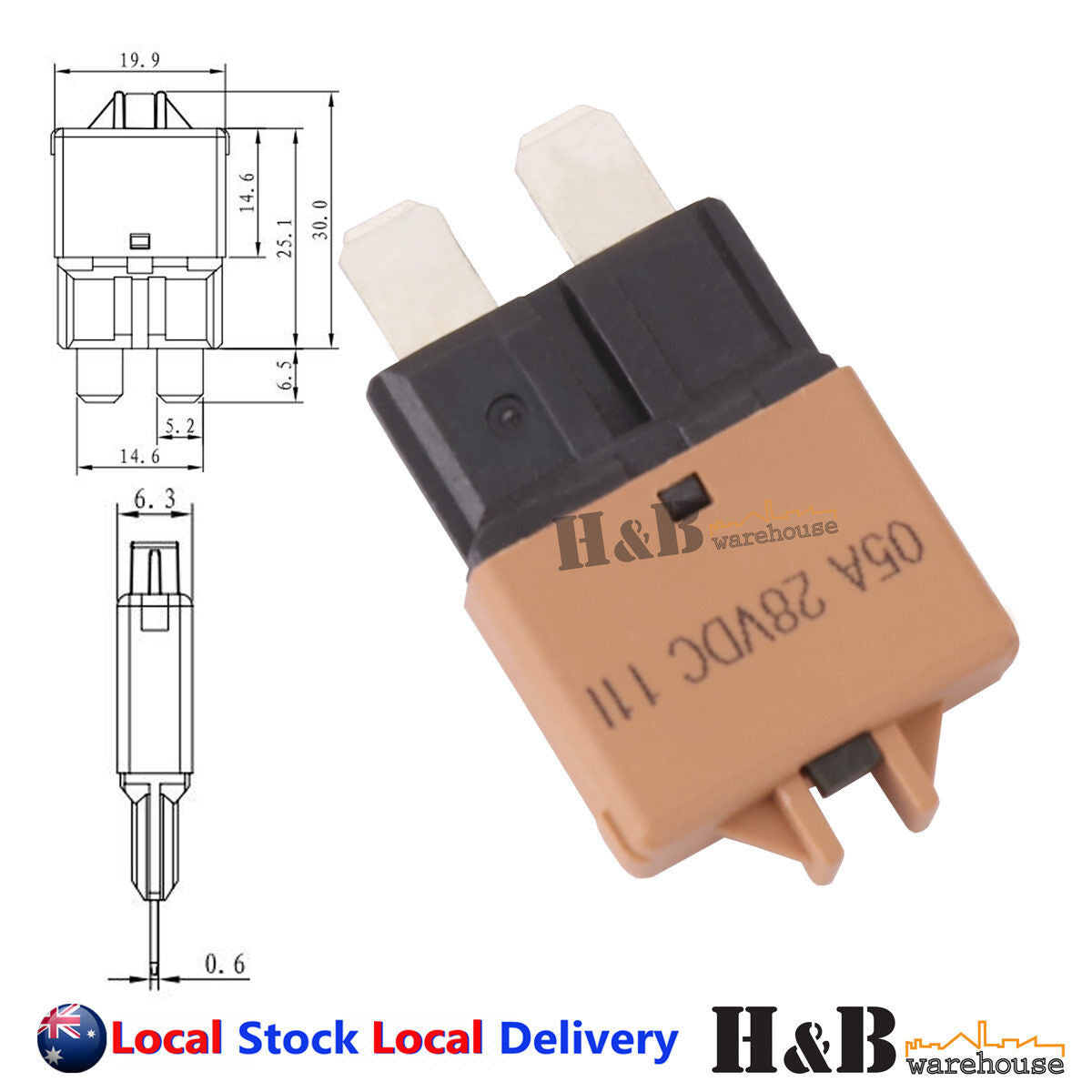

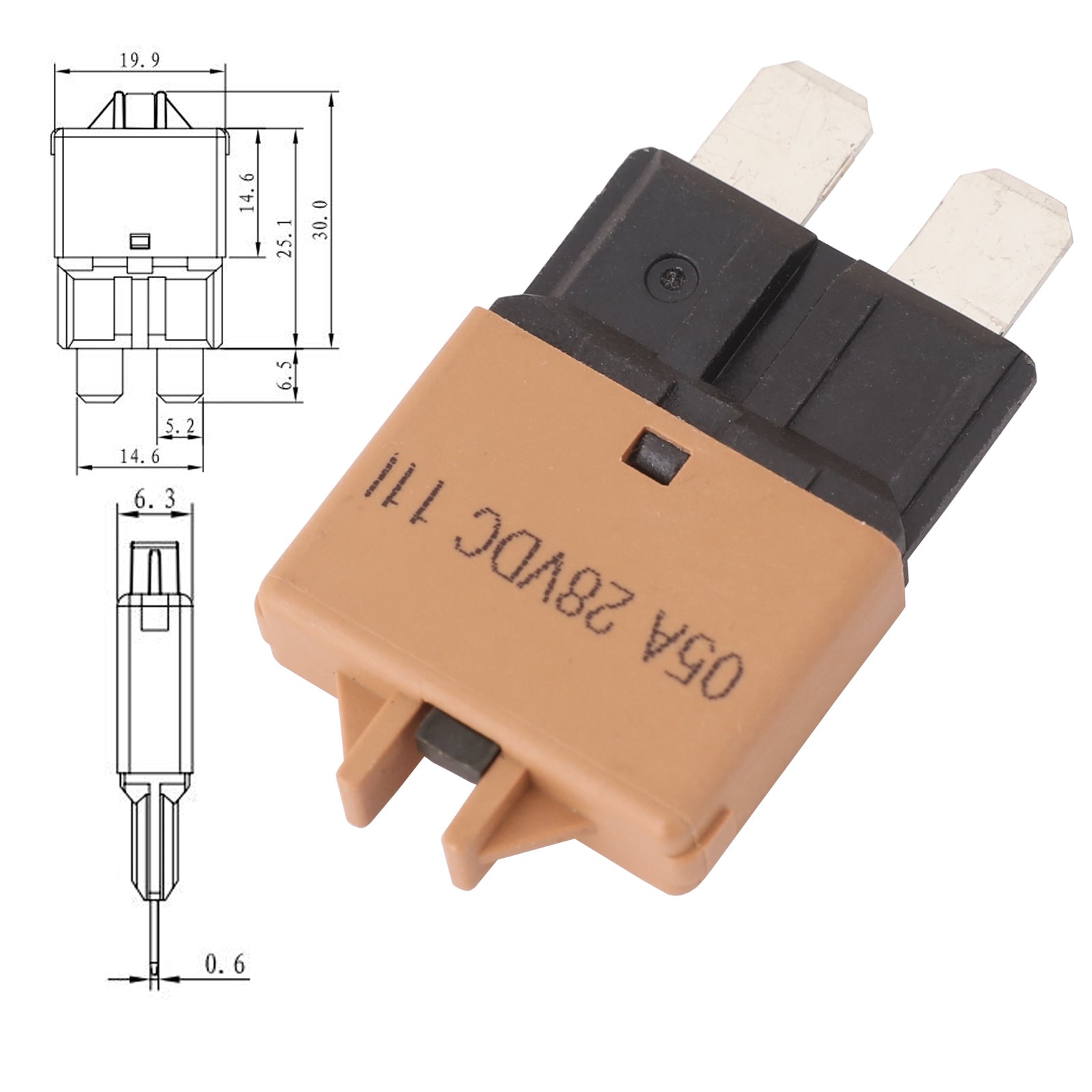

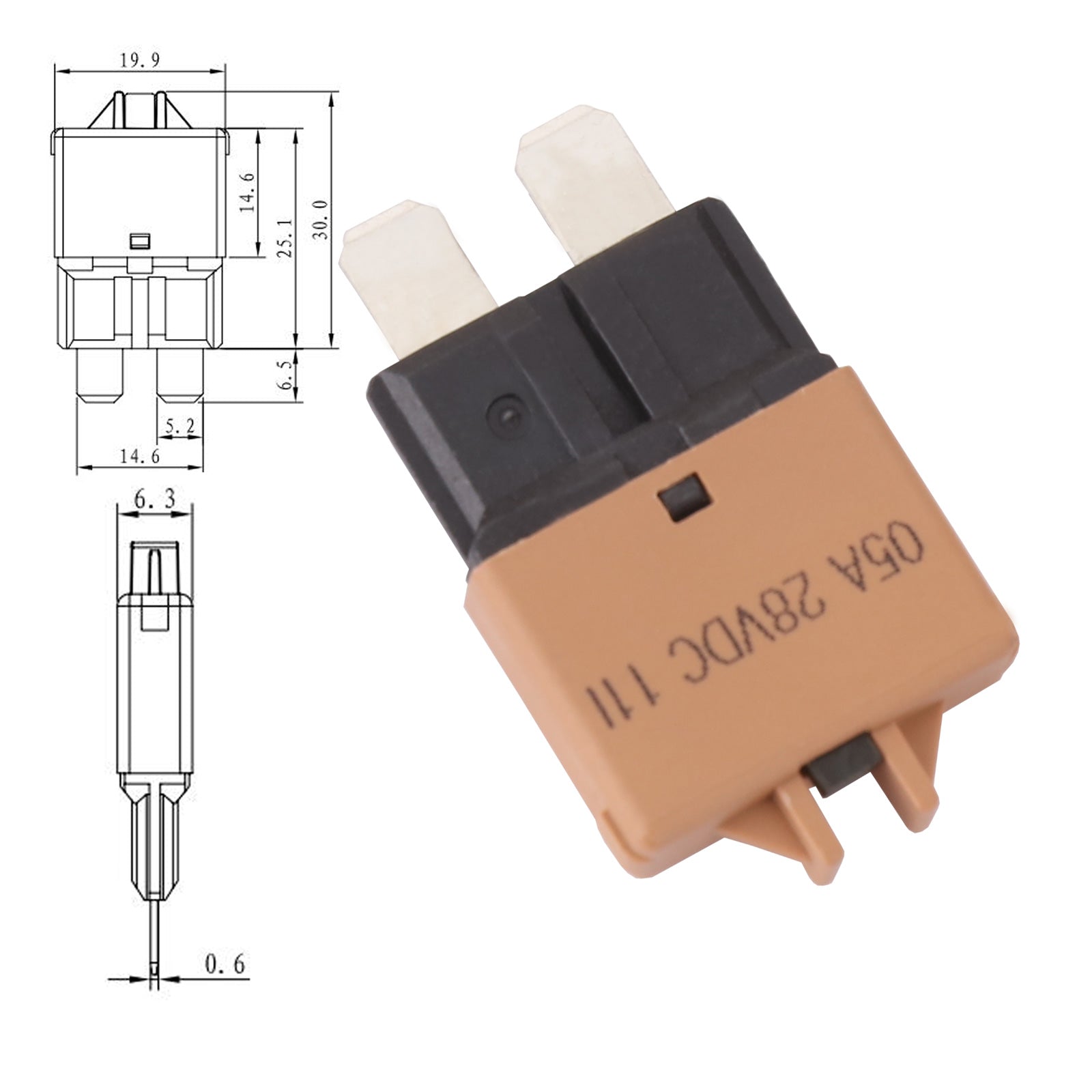

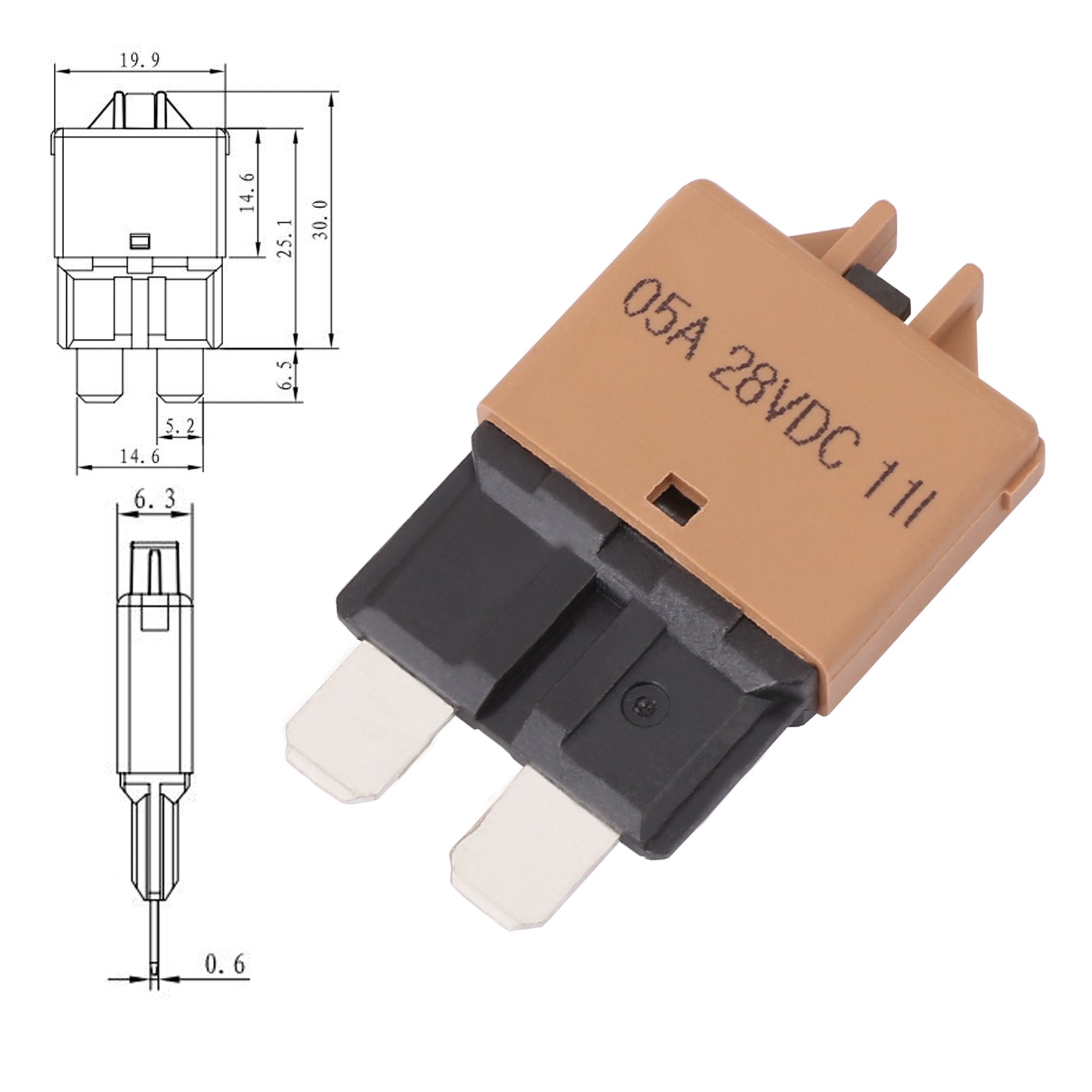

• Termination: 5.2mm wide blades, ATC compatible

• Overload Performance:

  • 100% load: No trip within 60 minutes

  • 150% load: Trip within 20 minutes

  • 200% load: Trip within 60 seconds

Applications:

• Automotive fuse replacement

• Car modification and custom wiring

• Marine, RV, and truck circuits

• Vehicle maintenance and repair

This 5A ATC Manual Reset Circuit Breaker provides fast, reliable, and reusable protection for your automotive circuits, making it an essential component for mechanics, DIY car enthusiasts, and professional auto workshops.
