4x 1.8Meters Sloped Edges Anchor Track With 6 Double Stud and Stainless Steel Fittings | Adjustable Tie-Down System

Product Description:

The 4x 1.8Meters Sloped Edges Anchor Track with 6 Double Stud and Stainless Steel Fittings offers a reliable and adjustable anchoring system designed to meet the needs of utes, vans, 4WDs, trailers, and more. This versatile system is perfect for when you need secure tie-down points for your cargo.

Featuring sloped edges, the track allows for easier rolling of wheeled objects over the surface compared to standard flat tracks, making it a smoother option for moving heavy loads. Double stud fittings enhance strength by providing a more secure connection over single stud fittings and allow you to connect to two anchor track slots for added stability. The spring-load adjustable double stud fittings make it easy to slide into place, ensuring a quick and secure setup.

Compatible with most anchor tracks on the market (including all anchor tracks in our store), the system is built from high-tensile galvanized steel with yellow passivation for long-lasting durability. The track is mounted securely with 304 stainless steel bolts, washers, and nylock nuts, ensuring that it stays firmly in place even in demanding conditions.

Key Features:

✔ Sloped Edges – Provides smoother movement of wheeled objects over the track, reducing friction.

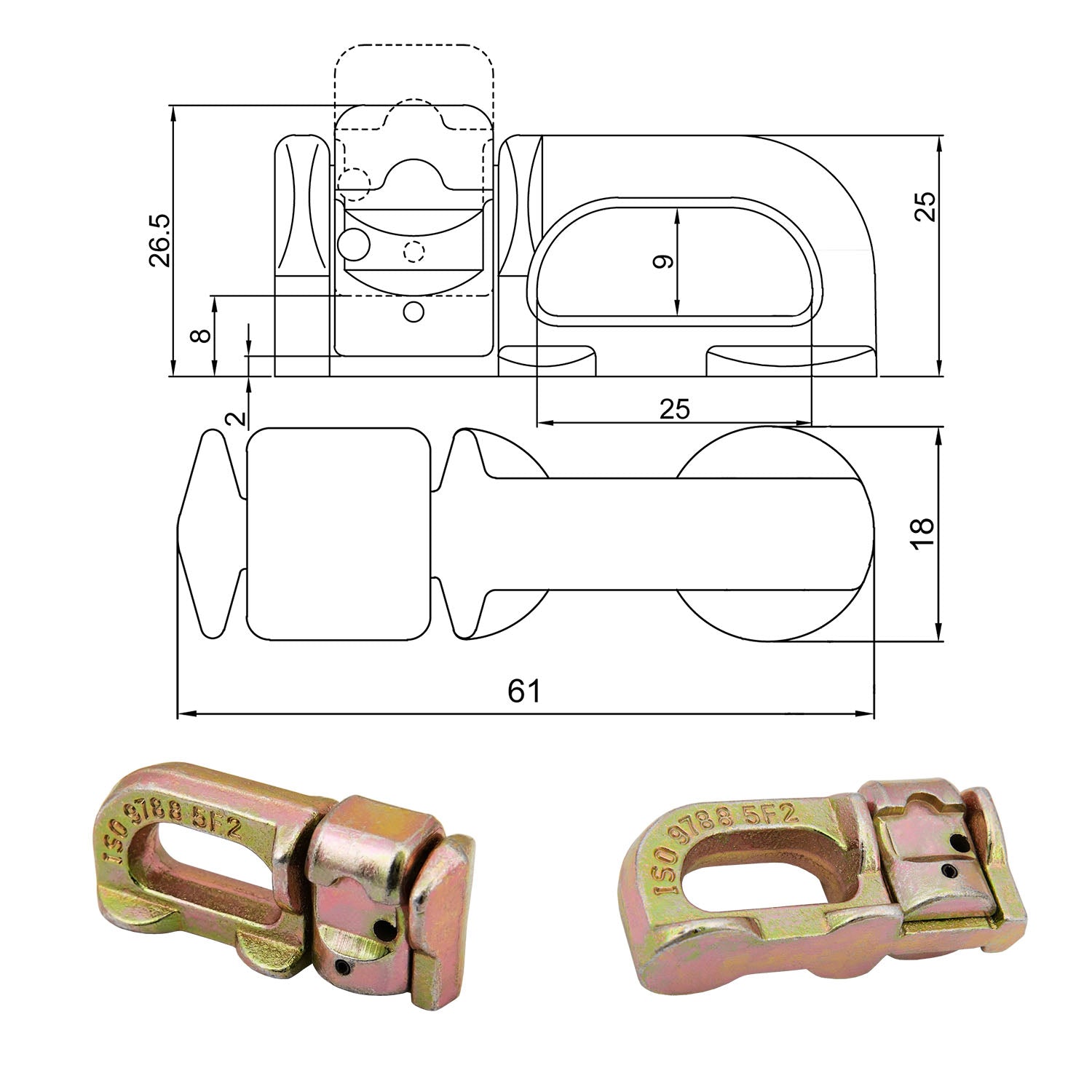

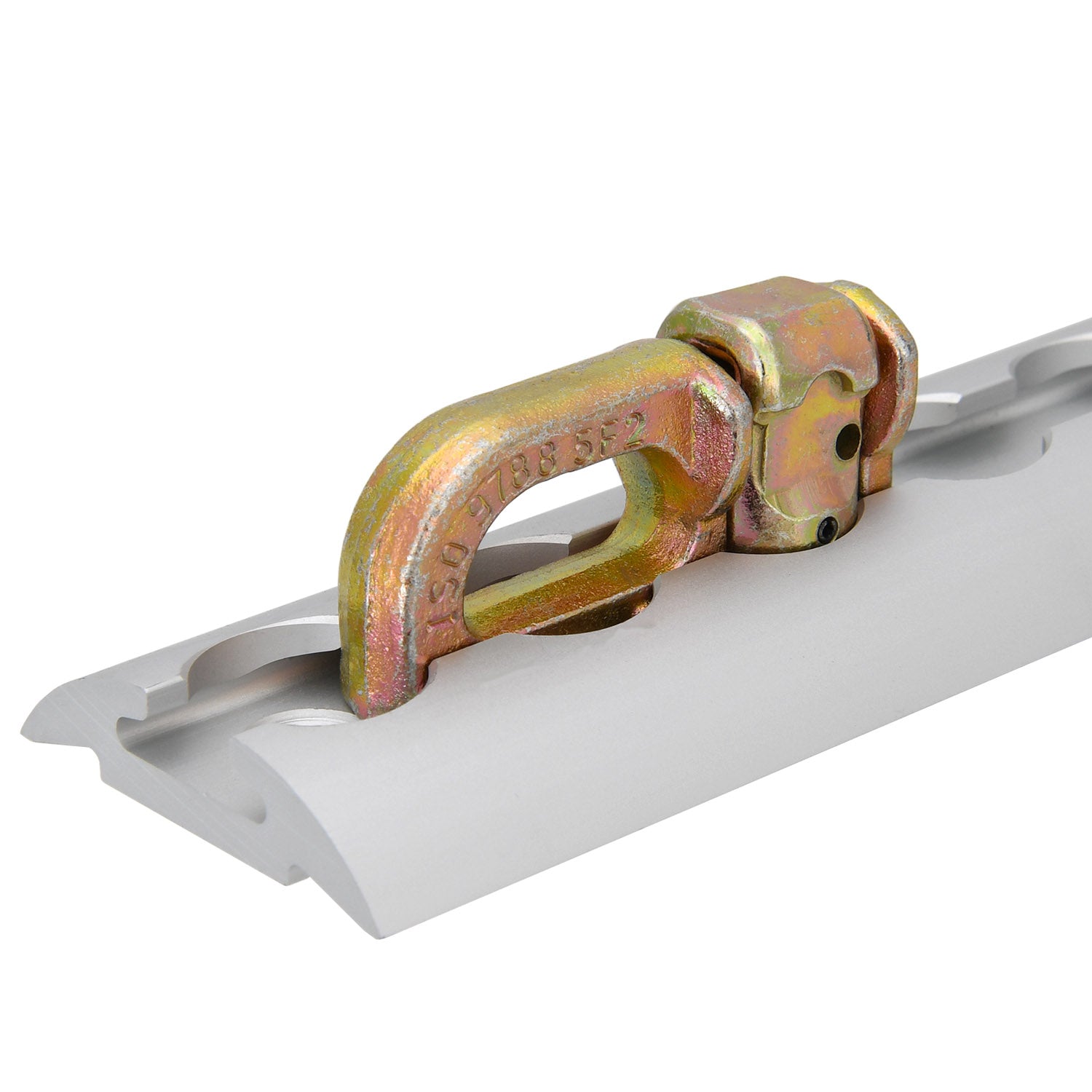

✔ Double Stud Fittings – Offers added strength and stability, connecting to two anchor track slots.
✔ Durable Construction – Made from high-tensile galvanized steel with a yellow passivated finish for corrosion resistance.
✔ 304 Stainless Steel Mounting Hardware – Includes bolts, washers, and nylock nuts for a secure, long-lasting hold.
✔ Easy to Install – Spring load adjustable fittings that slide easily into the track.
✔ Breaking Strength – Rated at 2750 KG / 6000 lbs with a WLL (Working Load Limit) of 907 KG / 2000 lbs.

Included in the Package:

• 6 x 1800mm anodized sloped anchor tracks (each track measures 1791mm for profile matching)
• 16 x Double stud lashing points for secure tie-down
• 40 x stainless steel mounting screws and nylock nuts
• 10 mounting holes per track for easy installation

Specifications:

• Material: High-Tensile Galvanized Steel, 304 Stainless Steel

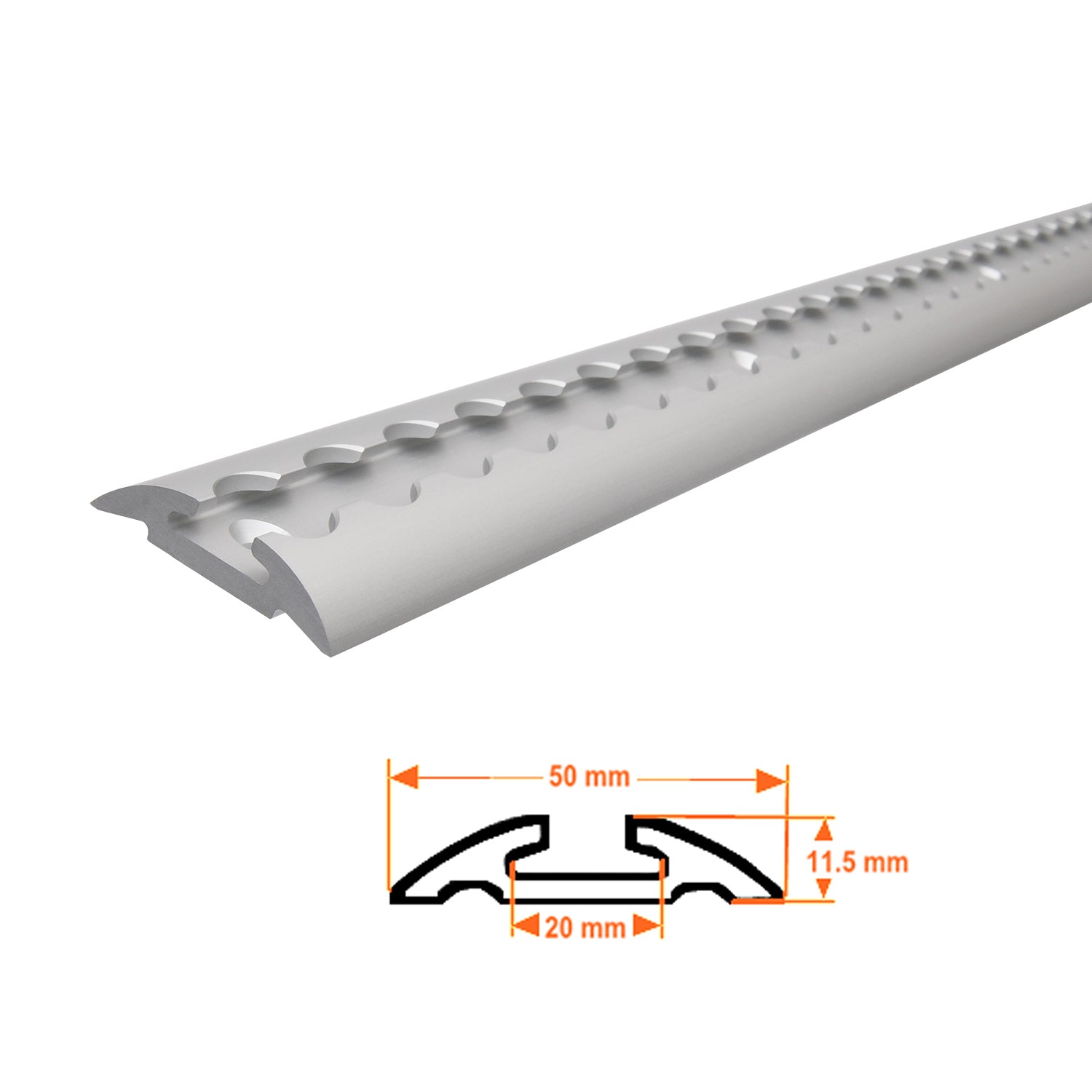

• Track Dimensions: Width: 50mm, Height: 11.5mm
• Breaking Strength: 2750 KG (6000 lbs)
• Working Load Limit (WLL): 907 KG (2000 lbs)
• Warranty: 1 Year

This multi-purpose anchor track system offers an adjustable, easy-to-install solution for securing your cargo with maximum strength and reliability. Perfect for all types of vehicles and trailers.
