1.8M Sloped Edges Anchor Track 2XTracks 8X Double Stud

Product Description:

The 2x 1.8Meters Sloped Edges Anchor Track with 6 Double Stud and Stainless Steel Fittings provides a versatile and fully adjustable tie-down anchoring system suitable for utes, vans, 4WDs, trailers, and more. This system is designed to securely fasten cargo, offering a dependable solution for when you need tie-down points.

Equipped with sloped edges, this track allows for smooth rolling of wheeled objects over the surface, providing easier movement compared to standard anchor tracks. The double stud fittings add extra strength by connecting to two anchor track slots, providing enhanced support. These fittings are also spring-load adjustable, making installation and adjustments quick and easy.

This anchor track system is compatible with most anchor tracks on the market (including all anchor tracks available in our store), and it is built from high-tensile galvanized steel with a yellow passivated coating for maximum durability. The system also includes 304 stainless steel bolts, washers, and nylock nuts to securely hold the track in place, ensuring long-lasting performance.

Key Features:

✔ Sloped Edges – Allows for smoother movement of wheeled objects over the track, reducing friction.

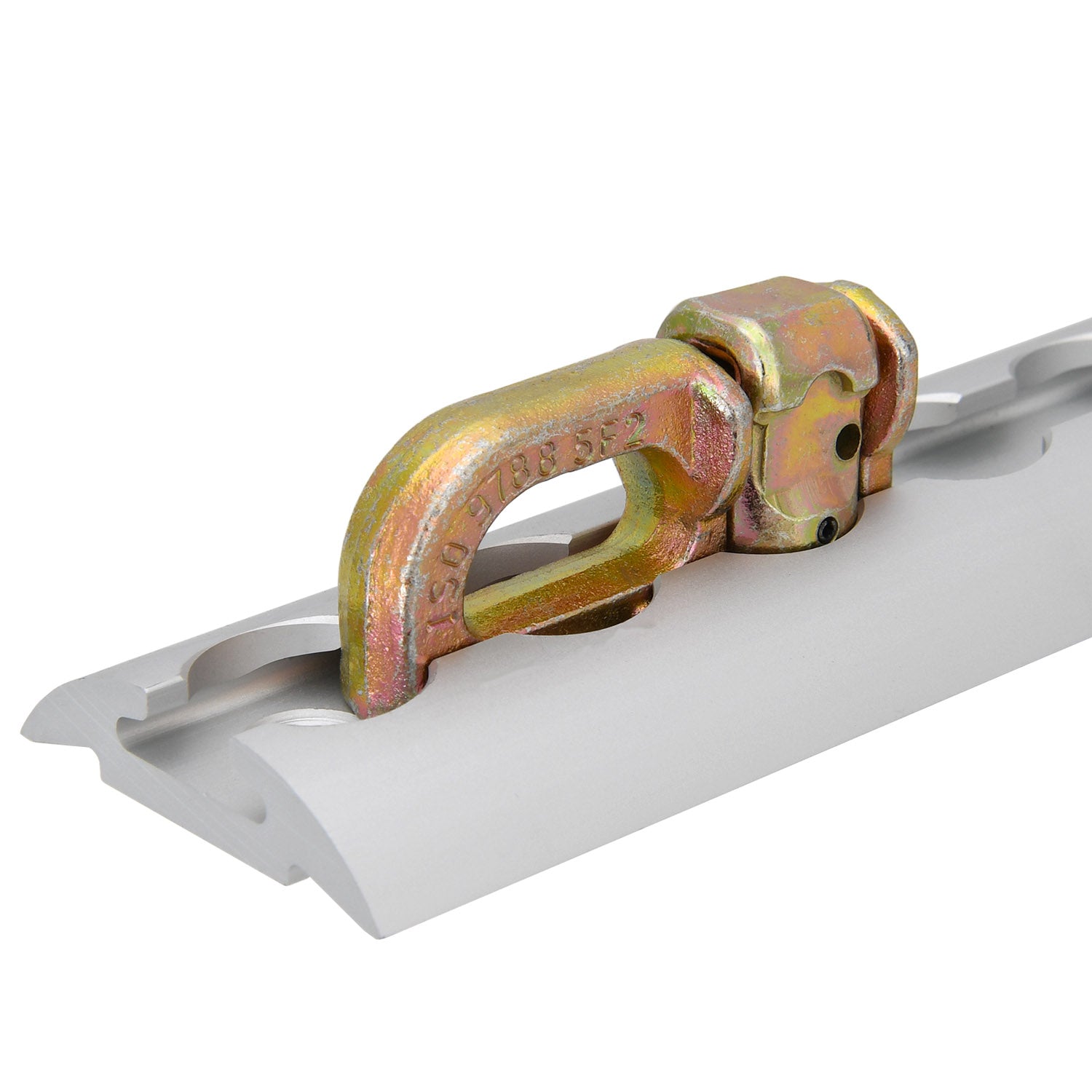

✔ Double Stud Fittings – Connects to two anchor track slots for added strength and stability.
✔ Durable Construction – Constructed from high-tensile galvanized steel with a yellow passivated finish for corrosion resistance.

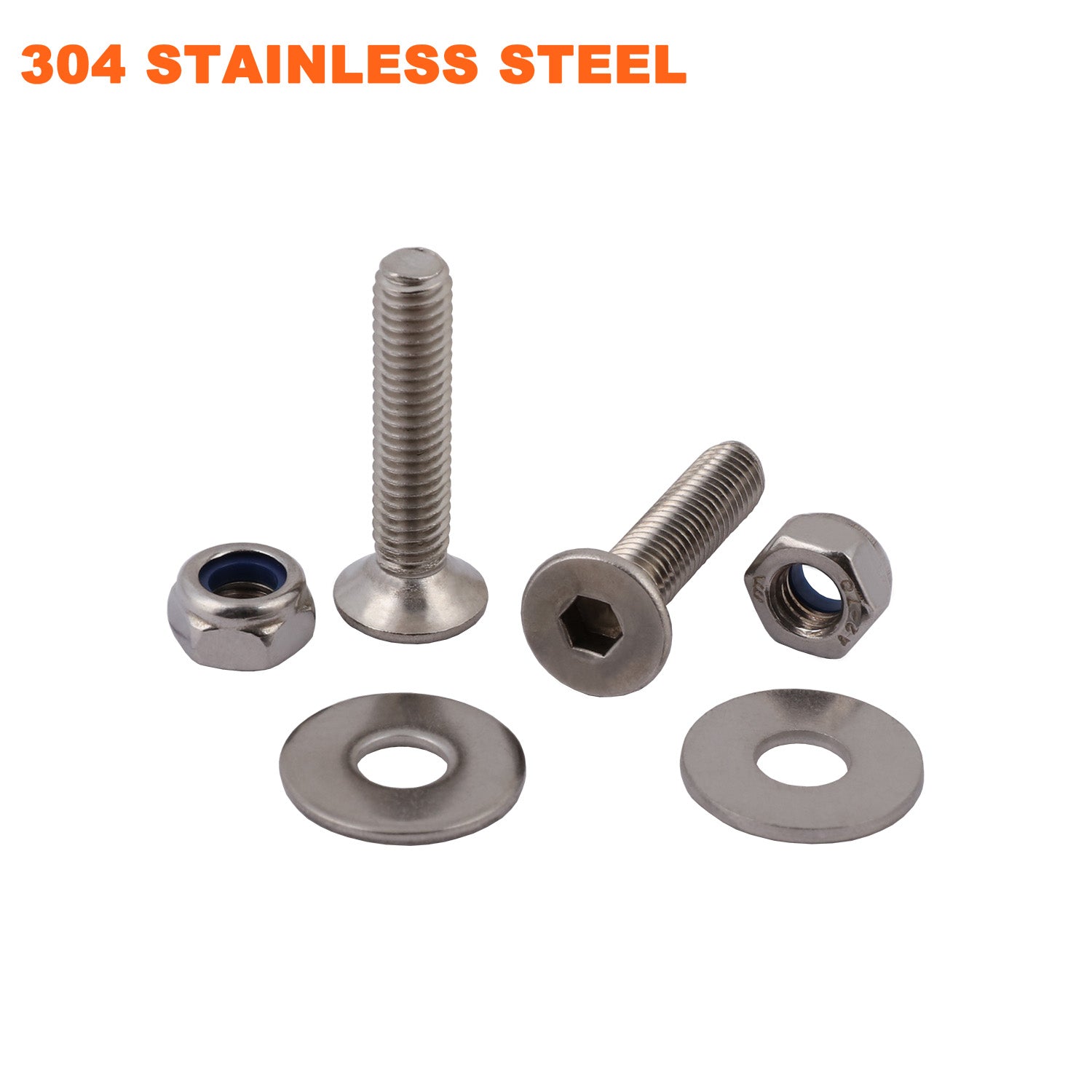

✔ 304 Stainless Steel Mounting Hardware – Includes bolts, washers, and nylock nuts for a secure and long-lasting hold.
✔ Easy Installation – Spring-load adjustable fittings for simple and quick setup.
✔ Breaking Strength – Rated at 2750 KG / 6000 lbs with a WLL (Working Load Limit) of 907 KG / 2000 lbs.

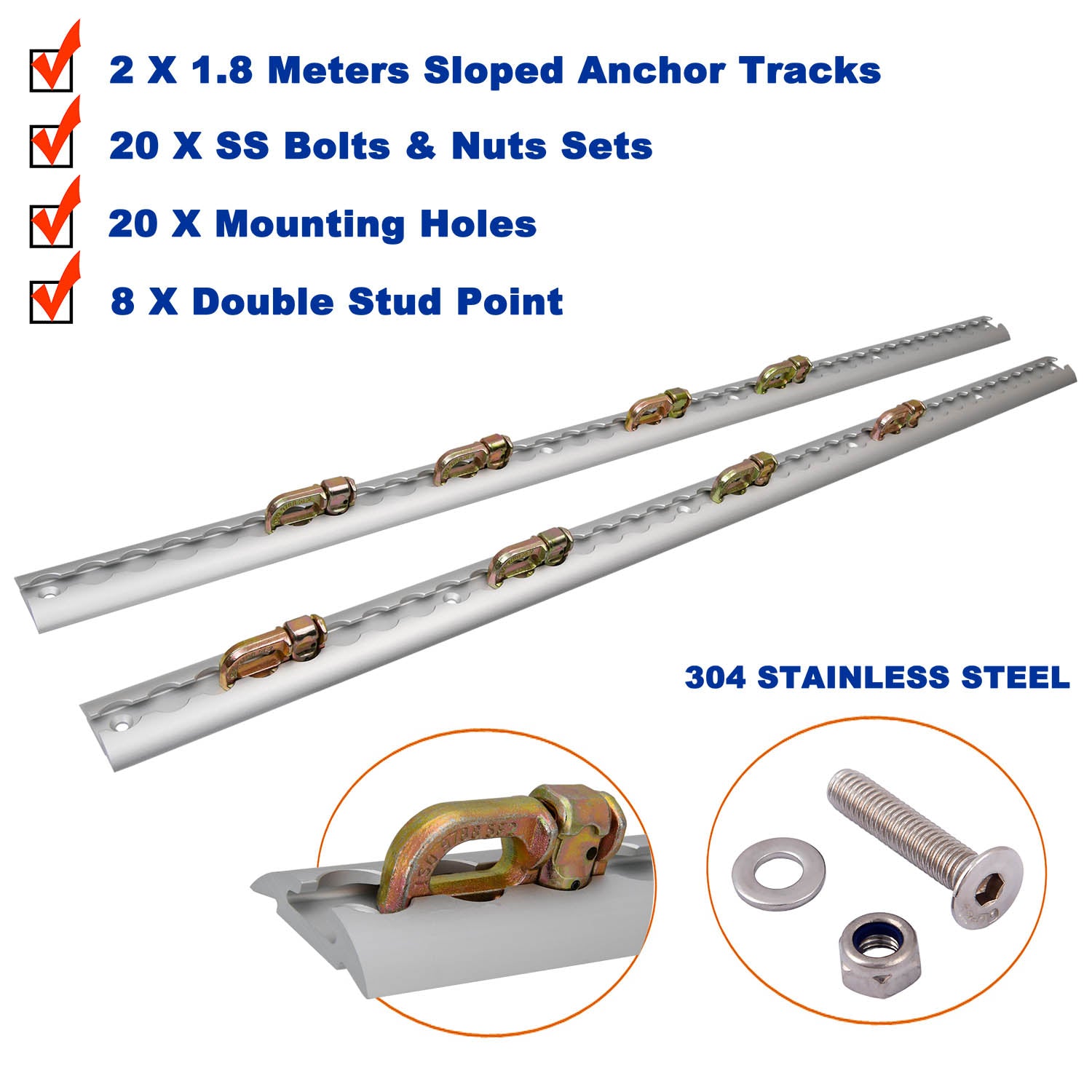

Included in the Package:

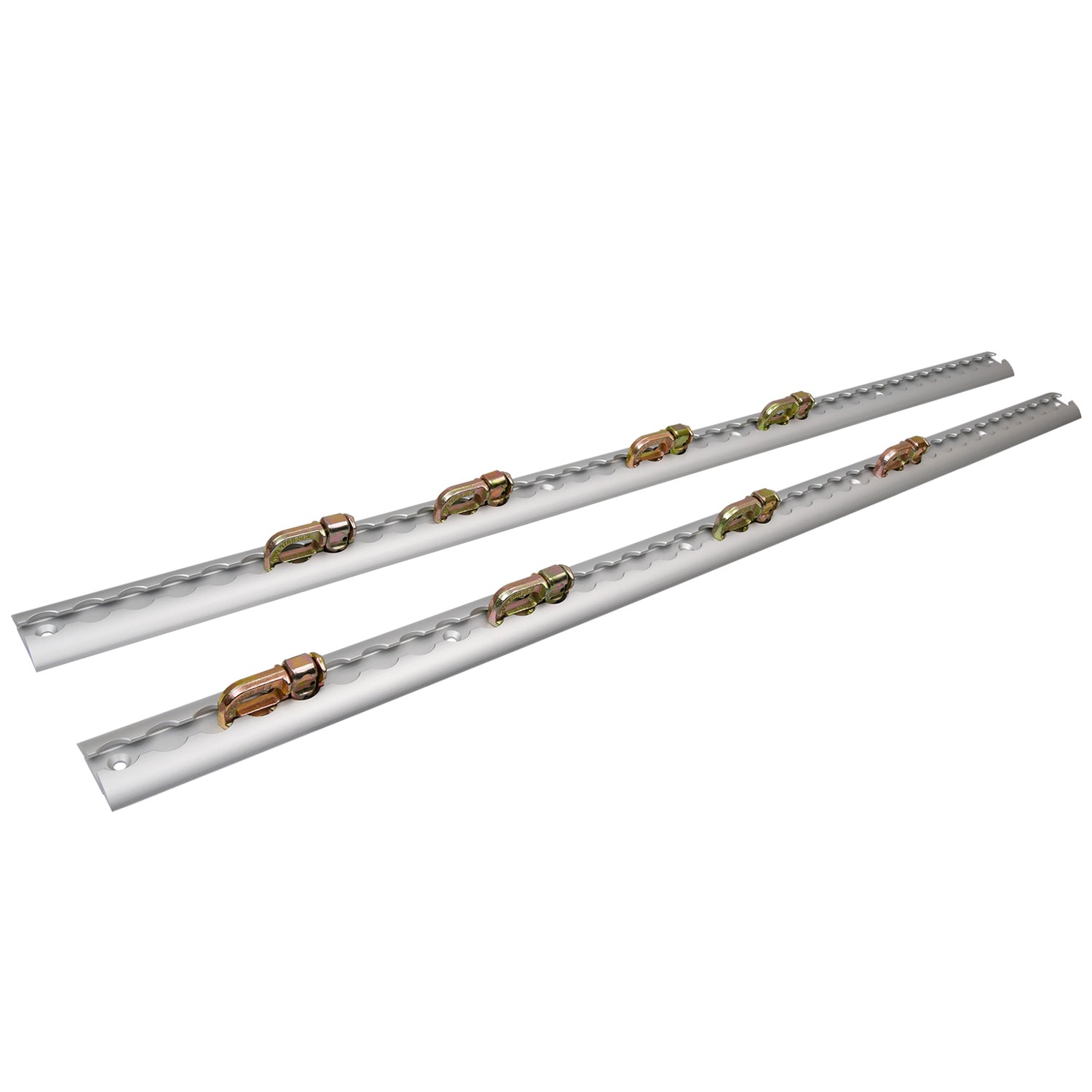

• 2 x 1800mm anodized sloped anchor tracks (exact length for each is 1791mm to suit profile match)

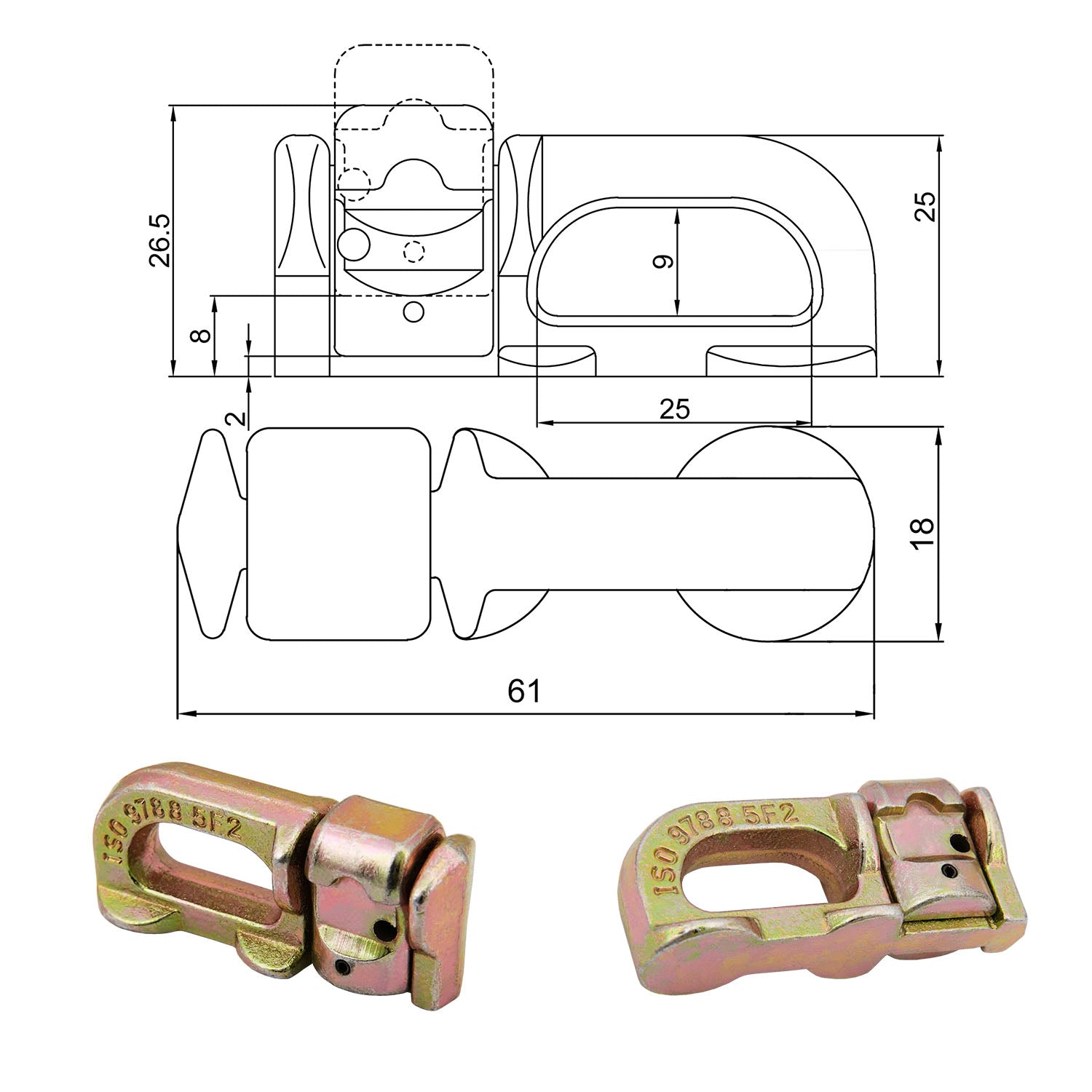

• 8 x Double stud lashing points for secure tie-down
• 20 x stainless steel mounting screws and nylock nuts
• 10 mounting holes per track for easy installation

Specifications:

• Material: High-Tensile Galvanized Steel, 304 Stainless Steel

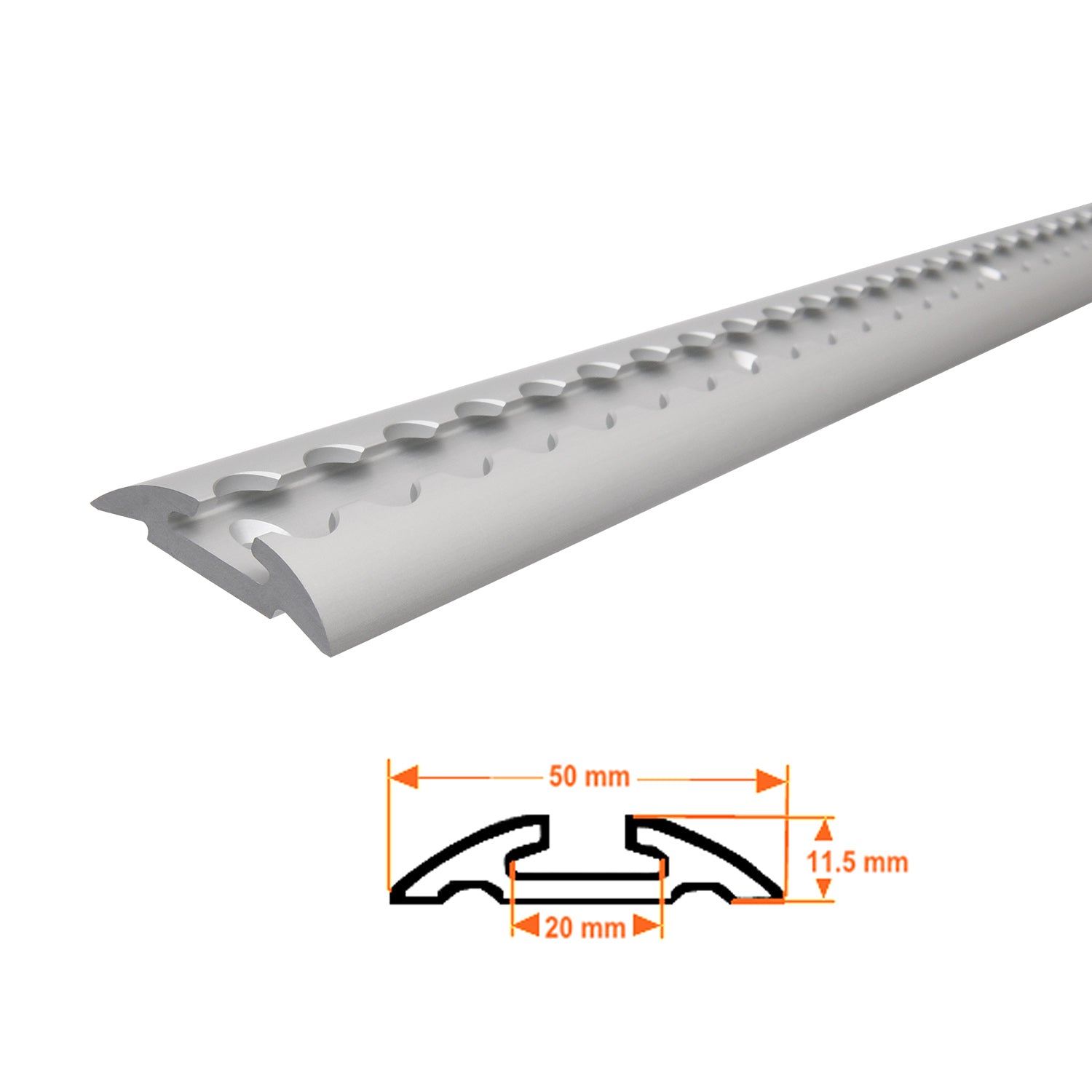

• Track Dimensions: Width: 50mm, Height: 11.5mm
• Breaking Strength: 2750 KG (6000 lbs)
• Working Load Limit (WLL): 907 KG (2000 lbs)
• Warranty: 1 Year

The 2x 1.8Meters Sloped Edges Anchor Track System is the perfect solution for securing cargo, offering maximum strength, durability, and ease of use. Ideal for various vehicles and trailers.
